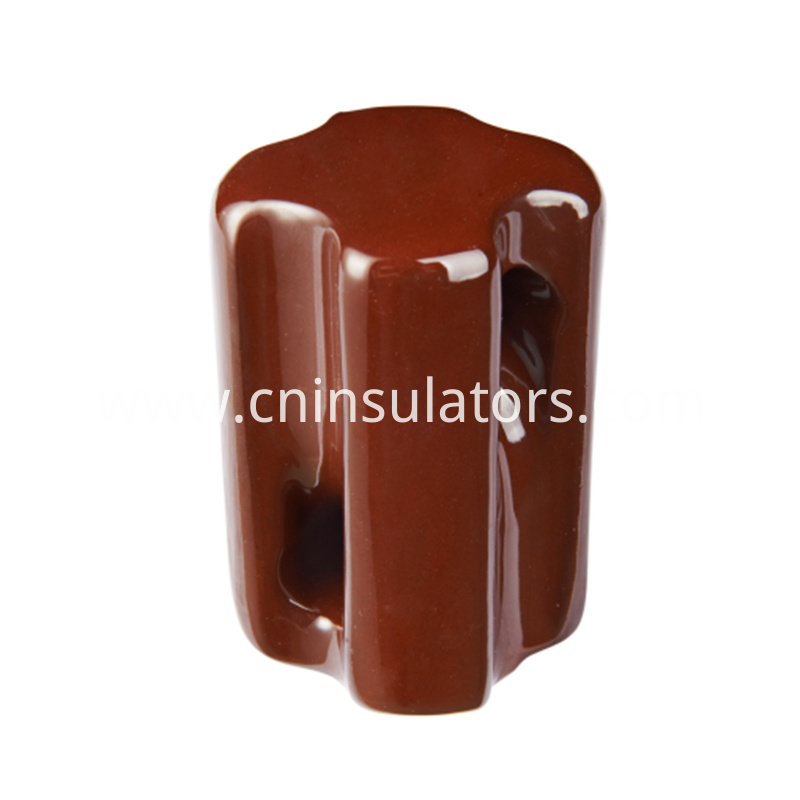

ANSI 54-1 Electrical Porcelain Strain Insulators
  • ANSI 54-1 Electrical Porcelain Strain Insulators

ANSI 54-1 Electrical Porcelain Strain Insulators

    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 1000 Piece/Pieces
    Delivery Time: 30 Days

Basic Info

Model No.: ANSI 54-1

Application: Insulators

Type: Solid

Material: Porcelain

Certification: ISO9001

Color: Brown

Additional Info

Packaging: Carton, Wooden case, Sack or as per customer's requirement

Transportation: Ocean,Land

Place of Origin: Fuzhou, China

HS Code: 85462090


Product Description

Guy Strain Insulator porcelain are used in guy cables supporting utility poles, stay type insulator to prevent any high voltage on the cable due to leakage currents or an electrical fault on the pole from reaching the lower part of the cable which is accessible by the public. Stay insulator price please contact with us.


1. The ceramic is under compression rather than tension, which takes advantage of ceramic's greater compressional strength
2. If the ceramic breaks the two wire loops are still linked and will not fall to the ground
3. Very long life, made of inorganic materials and do not age
4. Very reliable, with a proven track record. Over 80 years of experience
5. Easier to maintain, can be coated and washed
6. Strong in compression

Type 54-1
Creepage Distance,mm 41
Main Dimensions H 89
h 44
h1 64
D 64
d 44
d1 16
Mechanical Failing Load,KN 44
Low Frequence Flashover Voltage Dry,KV 25
Wet,KV 12
Net Weight, Each Approx., kg 0.5
54-1 strain insulatorstrain insulator

Our Services

1. Small orders accepted
2. Fast producing time, prompt delivery
3. International approvals
4. Reply promptly in 24 hours
5. Best price


1. Q: How about payment terms ?
A: 30% TT deposit + 70% TT before shipment,50% TT deposit + 50% LC balance, Flexible payment can be negotiated.
2. Q: Do you have some videos where we can see the line producing ?
A: Yes, we can provide some videos for reference.
3. Q: Are you a Manufacture Factory ?
A: Yes. We are the direct manufacture factory, and our factory has specialized in Porcelain Insulator,Composite Insulator, glass insulator,Cut Out Fuse,ABC Cable Fitting ,arrester, Power Fitting,etc.
4. Q: How long is producing time ?
A: Normally it will take about 30 days for production.
5. Q: What is the standard of package ?
A: For small capacity, we use carton, but for big capacity, we will use strong wooden case for protection or double inner packs in a master carton.
6. Q: How do you make sure your good quality ?
A: We use the best raw material , and every single product will go through a series of strict test.

insulator machineline post insulatorlong rod insulatorporcelain insulator machineporcelain insulatorpost insulator
We warmly welcome friends both domestic and abroad to visit our company, if you have any questions, please contact with us directly.

Looking for ideal Stay Type Insulator Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Guy Strain Insulator Porcelain are quality guaranteed. We are China Origin Factory of Stay Insulator Price. If you have any question, please feel free to contact us.
