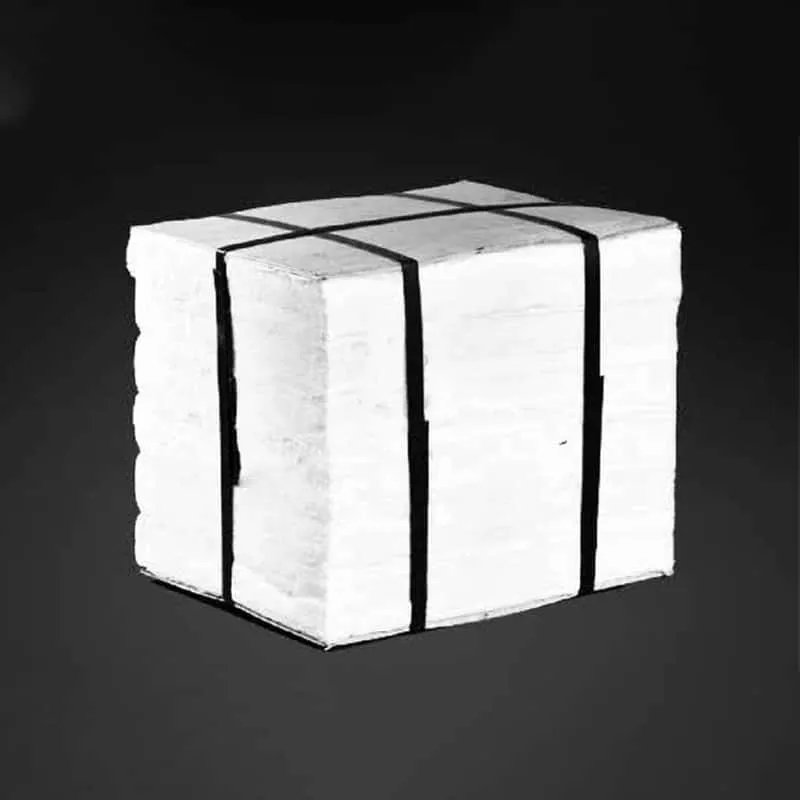

Alumina fiber module is made from compressed alumina fiber blanket. The module is specially designed to meet the thermal insulation requirements of all-fiber lining between 1300℃ and 1500℃.
Alumina fiber module is made from compressed alumina fiber blanket. The module is specially designed to meet the thermal insulation requirements of all-fiber lining between 1300℃ and 1500℃. Alumina fiber module is produced with various anchoring systems to enable quick, easy and efficient installation in most furnace linings. Alumina fiber module has the advantages in corrosion resistance and long service life.
Excellent thermal shock resistance
Excellent chemical stability
High-temperature stability
Low thermal conductivity
Low installation and repair costs
Petrochemical
Refining, iron and steel
Non ferrous
Ceramic and glass
Heat treatment
| Description | MODULE |
|---|---|
| Classification Temperature (℃ ) | 1600 |
| Continuous Temperature Use Limit (℃ ) | 1500 |
| Chemical Composition (%) | |
| Al₂O₃ | 71-73 |
| SiO₂ | 27-29 |
| Leachable Chlorides | Trace |
| Color | White |
| Density (kg/m³) | 128/160/196 |
| Permanent Linear Shrinkage (%) | 1400℃ x 24h <1.0 |
| Thermal Conductivity (W/m·K) | |
| 400℃ | 0.09 |
| 600℃ | 0.16 |
| 800℃ | 0.22 |
| 1000℃ | 0.28 |
| 1200℃ | 0.36 |
| 1400℃ | 0.45 |
