High Temperature Ceramic Fiber Monolithic Module

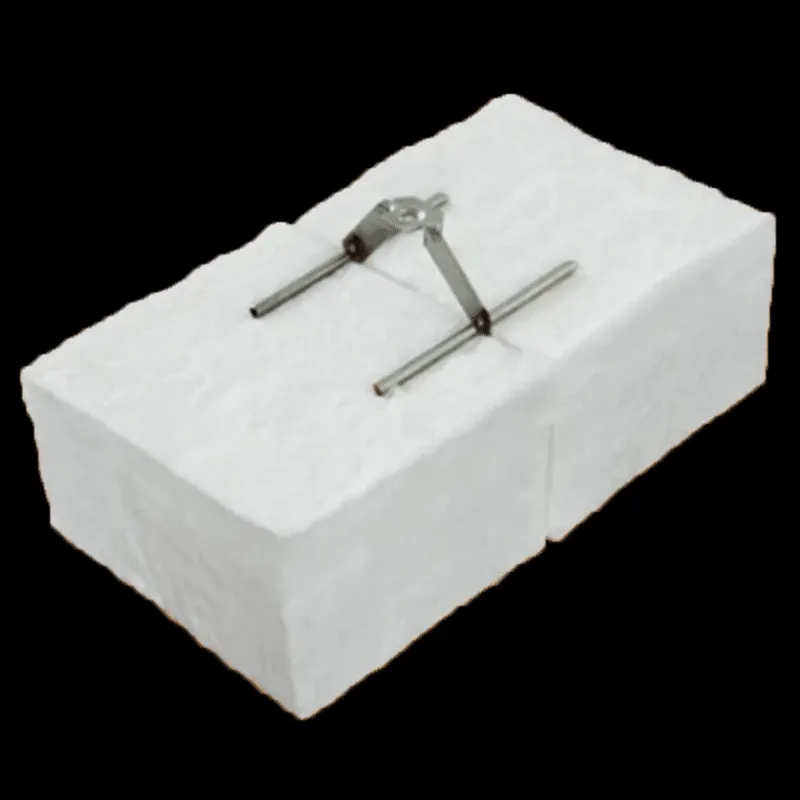

Monolithic Module is a blocky monolithic fiber module which is made from high-purity synthetic materials. It is manufactured in a fully automated control continuous production line using ceramic fiber bulk slabs. Monolithic Module is installed with a new special anchor and installation tools to ensure high extrusion between modules, convenient and quick installations, firm positioning and safe structures. Monolithic Module is a brand-new and high-end product provided by Luyang to customers. It is a unique product in the application of ceramic fiber linings.

Inquiry now Contact us

Parameter

Module 28 is a composited module which is based on Module 26 and alumina fibers.

The hot surface is red and adopts alumina fibers. It can fully exert the high temperature resistance of alumina fibers, improving the using temperature and service life of the modules. The cold surface is white and adopts Module 26. It can be hardened at high temperatures and ensure structural robustness. The thickness of alumina layers in hot surface can be adjusted to meet different furnace temperature requirements. It can provide better solutions for heating resistant and energy-saving problems of high temperature ceramic kilns above 1250℃.

Features

1.Excellent thermal insulation performances

2.High rigidity and light weight

3.Good airflow scour resistance

4.Easy to install and firm structure

5.Excellent chemical stability

Applications

1.Petrochemical industry

2.Steel industry

3.Ceramics industry

4.Forging industry

5.Foundry industry

Parameter2

Description		Module 24			Module 26
Classification Temperature (℃ )		1316			1430
Color		White			White
Shot Content (%)		≤10			≤10
Density (kg/m³)		160	192	240	160	192	240
Permanent Linear Shrinkage (%)		1200℃ x 24h ≤3			1400℃ x 24h ≤3
Thermal Conductivity (W/m·K)
400℃		≤0.09			≤0.09
600℃		≤0.14			≤0.14
800℃		≤0.20			≤0.20
1000℃		-			≤0.28
Standard Size (mm)	Length	305
	Width	305
	Thickness	76-305
