Marine and Offshore Insulation

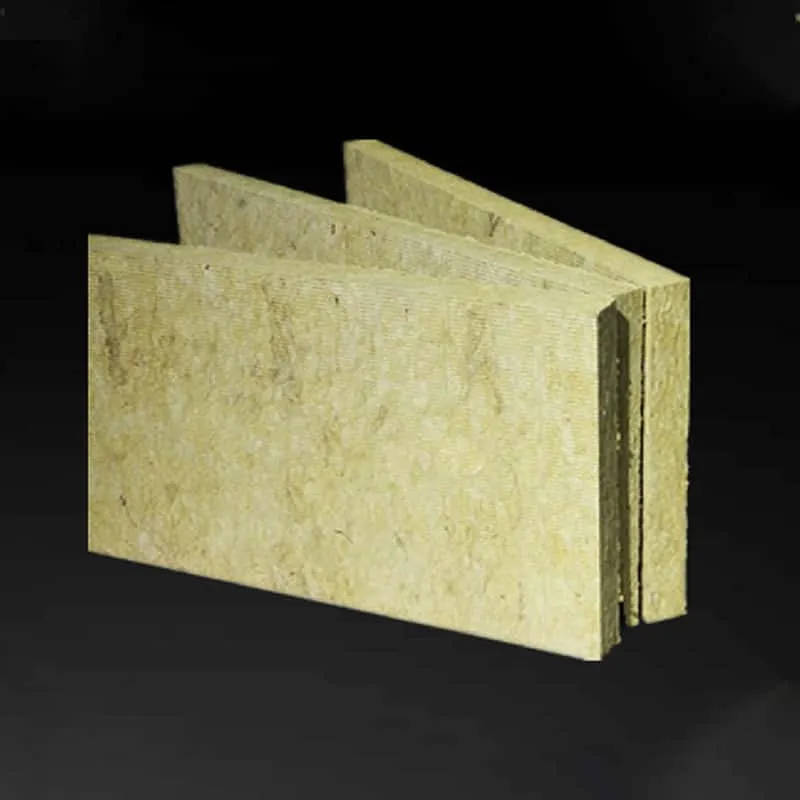

Basalt Rock Wool

Basalt-Rock-Wool-tuya
Basalt-Rock-Wool-tuya

Basalt rock wool is made of high-quality natural basalt ore as the main raw material, through high-temperature melting, high-speed centrifugal filament shaking, advanced three-dimensional production technology, adding a small amount of binder, and heat curing and setting. Basalt rock wool is made of high-quality natural basalt ore as the main raw material, through high-temperature melting, high-speed centrifugal filament shaking, advanced three-dimensional production technology, adding a small amount of binder, and heat curing and setting.

Parameter

Basalt Rock Wool

Basalt rock wool is made of high-quality natural basalt ore as the main raw material, through high-temperature melting, high-speed centrifugal filament shaking, advanced three-dimensional production technology, adding a small amount of binder, and heat curing and setting.

Because of its natural rock material and porous structure, the product has excellent thermal insulation, sound insulation and fire resistance. In the case of fire, no smoke is produced, and the material is completely noncombustible. It can be used as the heat preservation, sound insulation and fireproof insulation of bulkhead, deck and equipment, pipeline, etc. It can also be used as the core material of the vessel sanitary unit, floating floor and composite wall. Its’ excellent compression and tensile properties, very low water absorption, can meet the needs of various insulation ship.

Basalt rock wool for marine can be based on customer demand, coated aluminum foil cloth or glass cloth and other decorative materials in the product surface.



Product Features

Thermal insulation: With low shot content, long and thin porous fiber structure, low thermal conductivity, excellent thermal insulation effect.

Fireproofing: High quality raw materials, high temperature process, ensure the fireproof performance of products; will not produce fuel dripping, no toxic fumes produced.

Noise Reduction: A large number of internal rock wool fiber forming porous structure is communicated, high porosity, so that the rock wool products with high sound absorption characteristics.

Hydrophobic & Breathable: The hydrophobic technology of the product ensures that the rock wool is not damp absorbed and used for a long time on the ship, and the porous interconnection structure makes the product have good air permeability and moisture removal performance.

Good Strength: Three-dimensional production technologies is adopted to ensure the high pressure and high tensile strength of the product.

Healthy & Environment: No asbestos, non-carcinogenic, IARCY (International Agency for research on cancer) has been removed the rock wool from the list of "can cause cancer"; rock wool is chemically inert, neutral or alkaline water extract, no damage or corrosion and contact materials.

Applications: Products can be arbitrarily cut, convenient construction.


Parameter2

ItemTechnical Data
Density (kg/m³)45-150(±10%)
Thermal conductivity(W/m.k)≤0.035
Organic content (%)≤3
Regular Size(mm)1200 * 600 * (30-150)


ApplicationScope

Density
(kg/m³)

Thickness
(mm)

Weight/M2
(kg/m²)

Package information

Fire division
insulation

A60 deck4550(stiffener30)2.25

Can be one side or two side Covered With Aluminum Foil /or FG Cloth (Sewing /Stickup)

A60 bulkhead45

60(30+30)
Stiffener30

2.70
A30 deck4540(Stiffener30)1.6
A30 bulkhead4530(Stiffener30)1.92
A15 deck4530*0.96
A15 bulkhead4530*1.6
Thermal and sound insulationFor wall and deck45-15030-1500.8-6.4
(* The stiffener of without any cover)
