Marine and Offshore Insulation

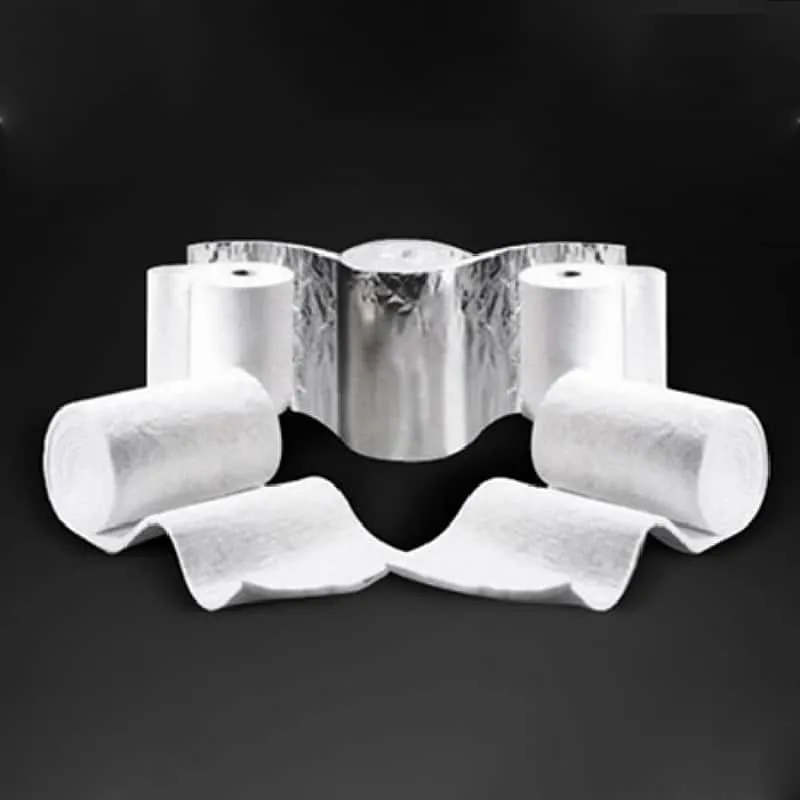

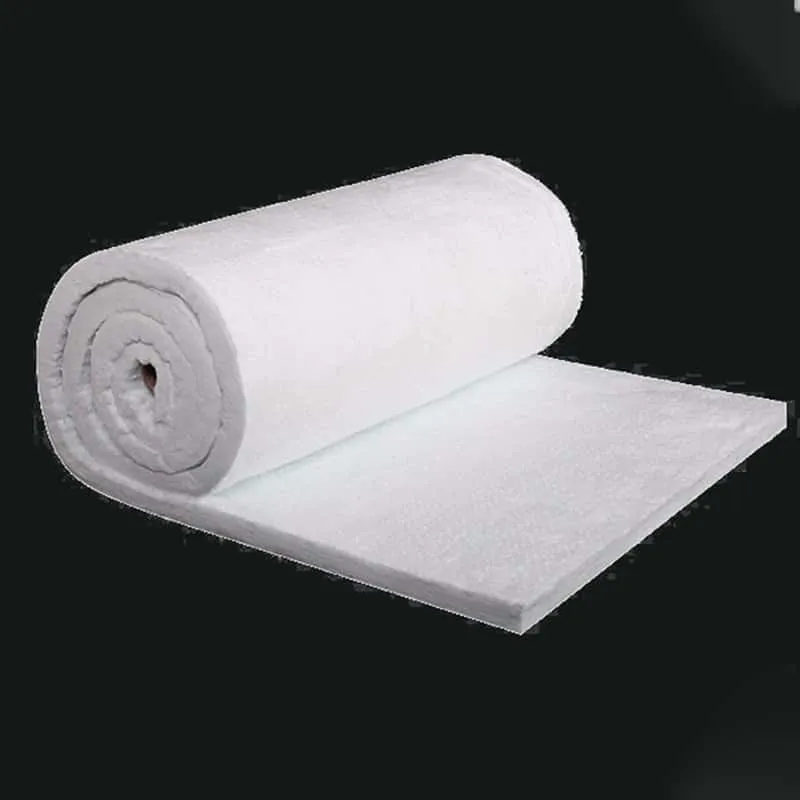

Biowool Marine Blanket

Biowool-Marine-blanket-tuya
Biowool-Marine-blanket-tuya

Marine blanket is a kind of low biological persistence and hydrophobic inorganic alkaline soil silicate fiber product made from silica, calcium and magnesium raw materials. It is degradable in human body fluids and completely harmless to human body. It has the properties of fire prevention, heat preservation and sound insulation. It is a pure inorganic environmental protection soluble material. Marine blanket is widely used in Ro-Ro passenger ships, offshore platforms and other ship types requiring weight reduction.

Parameter

Marine Blanket

Marine blanket is a kind of low biological persistence and hydrophobic inorganic alkaline soil silicate fiber product made from silica, calcium and magnesium raw materials. It is degradable in human body fluids and completely harmless to human body. It has the properties of fire prevention, heat preservation and sound insulation. It is a pure inorganic environmental protection soluble material. Biowool marine blanket is widely used in Ro-Ro passenger ships, offshore platforms and other ship types requiring weight reduction.

Compliance with the requirements of 2010 FTP code on fire resistance test procedures for non-flammability and A-level separation.

Meeting IMO SOLAS Security Convention, HSC Security Rules, EU Directive 2014/90/EU.

Ensure the safety of ships and crew and increase the safety of fire prevention.

Improve comfort cabin living, improving the working environment at sea.



Product Features

Environmentally friendly

Marine blanket has been tested in mice and has certain degradability in human body fluids. It belongs to exemption and non-restriction category (non-carcinogen) in the European Union 69/97/EC carcinogen safety classification, and has passed the EC and EUCEB.

Safe and effective fire performance

Made by pure inorganic refractory fibers, with excellent fire resistance, stable temperature resistance, fire protection grade is: A class.

No flue gas

Without any organic adhesives. In case of fire, smoke-free generation, completely non-flammable.

Soft texture

The 100% whole fiber component is produced by needle-punched interweaving process, which guarantees the flexible material of the product and is easy to construct.

Lightweight single square

Light density, thin thickness and light weight per square can greatly reduce the weight of the hull and make it lighter.

Sound effects

According to GB / T 20247-2006 standards, testing  marine blanket thickness of 50mm, the bulk density of 64 and 96 of sound-absorbing, noise reduction coefficient as follows.


Parameter2

ItemTechnical Data
Density (kg/m³)64-128 (±10%)
Thermal conductivity(W/m.k)≤0.34
Organic content (%)0
Shot Content (>0.21mm)≤10


ApplicationScope

Density
(kg/m³)

Thickness
(mm)

Weight/M2
(kg/m²)

Package information

Fire division
insulation

A60 deck64/96301.92/2.88

①Marine Blanket
②One Side or Two Side Covered With Aluminum Foil /or FG Cloth (Sewing /Stickup)

A60 bulkhead64/9640 (20 + 20)*2.56/3.84
A30 deck64251.6
A30 bulkhead64251.60
A15 deck64201.28
A15 bulkhead64201.28
Thermal and sound insulationFor wall and deck64-12812.5-500.8-6.4
For piping system64-12812.5-500.8-6.4
(* The stiffener of without any cover)
