BLANKET

soluble-fiber-blanket-tuya
soluble-fiber-blanket-tuya

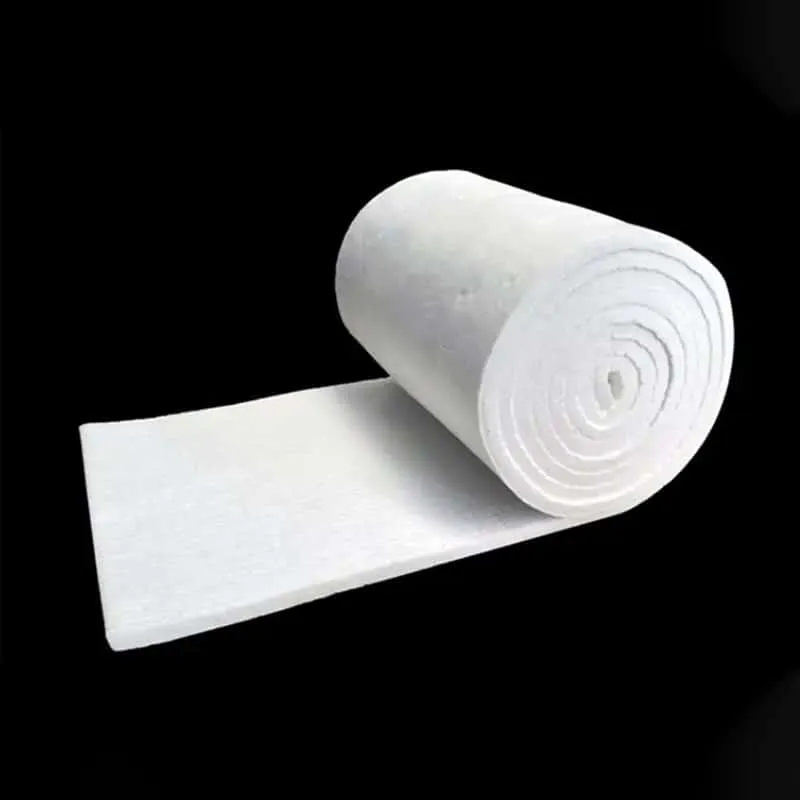

Blanket is high strength, needled insulating blanket that is made from soluble fiber bulk. The combination of spinning and needling operation produce tough, resilient and strong blankets, which have superior thermal and mechanical properties. Soluble fiber blanket is used in a wide range of applications including thermal insulation, appliances. Blanket can be folded, compressed and encapsulated to produce modules. It can meet European regulatory requirements (Directive 97/69/EC).

Parameter

Features

Excellent thermal shock resistance

Excellent thermal stability

High tensile strength

Low thermal conductivity

Low heat storage


Typical Applications

Pipe wrap

Furnace and kiln back-up insulation

Annealing furnace linings

Appliances insulation

Expansion joint seals



Parameter2

Description1100 BLANKET1300 BLANKET
Classification Temperature (℃ )11001300
Chemical Composition (%)
SiO₂62-68≥70
CaO26-32-
MgO4-7-
CaO + MgO-≥20
ColorWhiteWhite
Shot Content (%)≤12≤12
Density (kg/m³)649612896128
Tensile Strength (kPa)3050705070
Permanent Linear Shrinkage (%)1100℃ x 24h ≤1.01260℃ x 24h ≤3.0
Thermal Conductivity (W/m·K)
200℃0.060.050.050.050.04
400℃0.110.090.080.100.08
600℃0.170.130.120.180.14
800℃0.280.200.170.300.22
1000℃0.400.280.250.460.33
1200℃---0.680.46
